Handling events in an MVVM WPF application

In a WPF application that uses the MVVM (Model-View-ViewModel) design pattern, the view model is the component that is responsible for handling the application’s presentation logic and state. This means that the view’s code-behind file should contain no code to handle events that are raised from any user interface (UI) element such as a Button or a ComboBox nor should it contain any domain specific logic.

Ideally, the code-behind of a view – typically a Window or a UserControl – contains only a constructor that calls the InitializeComponent method and perhaps some additional code to control or interact with the view layer that is difficult or inefficient to express in XAML, e.g. complex animations.

In other words, an MVVM application should not have any code like this where a button’s click event is handled in the code-behind of the view:

<Button Content="Click here!" Click="btn_Click"/>
protected void btn_Click(object sender, RoutedEventArgs e)
{
  /* This is not MVVM! */
}

Commands

Instead, in addition to providing properties to expose data to be displayed or edited in the view, the view model defines actions that can be performed by the user and typically expose these as commands. A command is an object that implements the System.Windows.Input.ICommand interface and encapsulates the code for the action to be performed. It can be data bound to a UI control in the view to be invoked as a result of a mouse click, key press or any other input event. As well as the command being invoked as the user interacts with the UI, a UI control can be automatically enabled or disabled based on the command.

The Execute method of the ICommand interface encapsulates the operation itself while the CanExecute method indicates whether the command can be invoked at a particular time or not. The interface also defines a CanExecuteChanged event that is raised on the UI thread to cause every invoking control to requery to check if the command can execute.

WPF provides two implementations of the ICommand interface; the System.Windows.Input.RoutedCommand and System.Windows.Input.RoutedUICommand where the latter is a subclass of the former that simply adds a Text property that describes the command. However, neither of these implementations are especially suited to be used in a view model as they search the visual tree from the focused element and up for an element that has a matching System.Windows.Input.CommandBinding object in its CommandBindings collection and then executes the Execute delegate for this particular CommandBinding. Since the command logic should reside in the view model, you don’t want to setup a CommandBinding in the view in order to connect the command to a visual element. Instead, you can create your own command by creating a class that implements the ICommand. The below implementation is a common one that invokes delegates for the Execute and CanExecute methods. If you are using Prism, the framework for building composite WPF and Silverlight applications from the Microsoft Patterns and Practices Team, there is a similar Microsoft.Practices.Prism.Commands.DelegateCommand class available.

public class DelegateCommand<T> : System.Windows.Input.ICommand
{
    private readonly Predicate<T> _canExecute;
    private readonly Action<T> _execute;

    public DelegateCommand(Action<T> execute)
        : this(execute, null)
    {
    }

    public DelegateCommand(Action<T> execute, Predicate<T> canExecute)
    {
        _execute = execute;
        _canExecute = canExecute;
    }

    public bool CanExecute(object parameter)
    {
        if (_canExecute == null)
            return true;

        return _canExecute((parameter == null) ? default(T) : (T)Convert.ChangeType(parameter, typeof(T)));
    }

    public void Execute(object parameter)
    {
        _execute((parameter == null) ? default(T) : (T)Convert.ChangeType(parameter, typeof(T)));
    }

    public event EventHandler CanExecuteChanged;
    public void RaiseCanExecuteChanged()
    {
        if (CanExecuteChanged != null)
            CanExecuteChanged(this, EventArgs.Empty);
    }
}

The view model will then expose properties of this type for the view to bind to. Below is a sample implementation of a view model that exposes a ButtonClickCommand that will disable any UI control that is bound to it if the private string field _input, which is in turn exposed through a string property called Input, is empty. If you only pass a single delegate to the constructor of the DelegateCommand<T> class, it will assume that the command should always by available and the CanExecute method will always return true. Also note that when the value of the string property changes, a RaiseCanExecuteChanged method is called to raise the CanExecuteChanged event in order to update the status of any control in the view that is bound to the command.

public class ViewModel
{
    private readonly DelegateCommand<string> _clickCommand;

    public ViewModel()
    {
        _clickCommand = new DelegateCommand<string>(
            (s) => { /* perform some action */ }, //Execute
            (s) => { return !string.IsNullOrEmpty(_input); } //CanExecute
            );
    }

    public DelegateCommand<string> ButtonClickCommand
    {
        get { return _clickCommand; }
    }

    private string _input;
    public string Input
    {
        get { return _input; }
        set
        {
            _input = value;
            _clickCommand.RaiseCanExecuteChanged();
        }
    }
}
public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();
        this.DataContext = new ViewModel();
    }
}
<StackPanel Margin="10">
    <TextBox Text="{Binding Input, UpdateSourceTrigger=PropertyChanged}"/>
    <Button Content="Click here!" Command="{Binding ButtonClickCommand}"
            Margin="0 5 0 0"/>
</StackPanel>

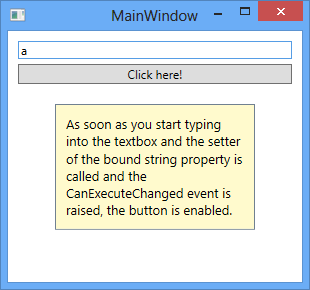

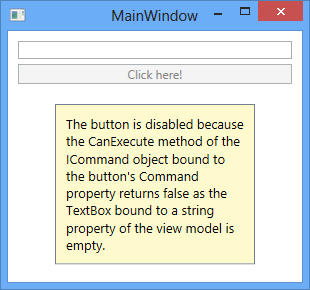

With this approach you have now moved the presentation logic from the view to the view model. Instead of hooking up the button’s click handler, its Command property is now bound to the command defined in the view model and when the user clicks on the button the command’s Execute method will be invoked.

disabledbutton enabledbutton

EventTriggers

There is an alternative way of associating a control in the view with a command object exposed by the view model. Only some controls can actually bind to a command through the Command property, notably those derived from System.Windows.Controls.Primitives.ButtonBase or System.Windows.Controls.MenuItem. If you want to attach a command to some other control or when you want to invoke a command on an event other than the click event for a button, you can use Expression Blend interaction triggers and the System.Windows.Interactivity.InvokeCommandAction class. Below is an example on how you would execute a command object called MouseEnterCommand in the view model when the user moves the mouse pointer over a Rectangle element in the view. You specify the event for which the command will be executed in the EventName property of the EventTrigger. Remember to add a reference to System.Windows.Interactivity.dll for this to compile.
Also note that using the InvokeCommandAction doesn’t automatically enable or disable the control based on the command’s CanExecute method, unlike controls that have a Command property and can be bound directly to a command.

<Window x:Class="Mm.HandlingEventsMVVM.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:i="clr-namespace:System.Windows.Interactivity;assembly=System.Windows.Interactivity"
        Title="MainWindow" Height="350" Width="525">
    <StackPanel>
        <Rectangle Fill="Yellow" Stroke="Black" Width="100" Height="100">
            <i:Interaction.Triggers>
                <i:EventTrigger EventName="MouseEnter" >
                    <i:InvokeCommandAction Command="{Binding MouseEnterCommand}" />
                </i:EventTrigger>
            </i:Interaction.Triggers>
        </Rectangle>
    </StackPanel>
</Window>

CommandParameters

If you wish to pass a parameter to a command from the view you do so by using the CommandParameter property. The type argument of the generic DelegateCommand<T> class specifies the type of the command parameter that gets passed to the Execute and CanExecute methods. The CommandParameter property exists in both the ButtonBase and MenuItem derived controls as well as in the InvokeCommandAction class:

<Button Content="Click here!" Command="{Binding ButtonClickCommand}"
                CommandParameter="some string to be passed..."
                Margin="0 5 0 0"/>
<i:InvokeCommandAction Command="{Binding MouseEnterCommand}"
                       CommandParameter="some string to be passed..."/>

CallMethodAction

Besides the InvokeCommandAction class, there is also another class named CallMethodAction that can be used to invoke a method in the view model from the view without using commands. It has a MethodName property for specifying the name of the method to call and a TargetObject property that needs to be bound to an instance of the class containing the method, i.e. the view model:

<Window x:Class="Mm.HandlingEventsMVVM.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:i="clr-namespace:System.Windows.Interactivity;assembly=System.Windows.Interactivity"
        xmlns:ei="http://schemas.microsoft.com/expression/2010/interactions"
        Title="MainWindow" Height="350" Width="525">
    <StackPanel>
        <Rectangle Fill="Yellow" Stroke="Black" Width="100" Height="100">
            <i:Interaction.Triggers>
                <i:EventTrigger EventName="MouseEnter" >
                    <!-- Execute a method called 'SomeMethod' defined in the view model -->
                    <ei:CallMethodAction TargetObject="{Binding}" MethodName="SomeMethod"/>
                </i:EventTrigger>
            </i:Interaction.Triggers>
        </Rectangle>
    </StackPanel>
</Window>
public void SomeMethod()
{
    /* do something ... */
}

Note that the CallMethodAction class is defined in another assembly and namespace and you will need to add a reference to Microsoft.Expressions.Interactions.dll to be able to use it. Also note that it doesn’t support parameters.

Advertisements

17 Comments on “Handling events in an MVVM WPF application”

  1. Ivo says:

    Thank you :-)

  2. Varan B says:

    It is not full collection of handling events in MVVM.
    There are at least 3-4 more at
    http://mvvmbindingpack.codeplex.com
    Which are very elegant in use.

  3. Oranos says:

    thank you very match

  4. codeAsHobby says:

    Thanks for comprehensive but clean and concise explanation. Both Commands and CallMethodAction worked well.

  5. Sandeep says:

    Can you provide source code?

  6. Clint says:

    Can you elaborate on how to handle the passed CommandParameter? Your delegate example doesn’t use it, and I can’t find a way to reference the parameter to pass it to a method being called when Executed.

  7. bhs67 says:

    I like the clear, concise explanation … with one TextBox and one Button. However, I would like to see all of the source code to implement MVVM for this example.

    For example, do I create a new WPF application (Visual Studio 2013) … then modify it? I tried this, and copied / pasted the EventTrigger code shown above -> didn’t compile.

  8. Hi bhs67,

    All source code is included in the post.

    The EventTrigger is defined in System.Windows.Interactivity.dll and, as stated in the text, you need to add a reference to this assembly in order for the application to compile. The assembly is part of the Expression Blend SDK which you can download from here: http://www.microsoft.com/en-us/download/details.aspx?id=10801.

  9. bhs67 says:

    Thanks for the prompt response. I can’t find the source code, other than code segments on this page.

    Also, how do you create an MVVM? Do you start by creating a new WPF ap with Visual Studio?

    It’s not clear to me how Expression Blend is used. Thanks!

  10. Clint says:

    There are about 10,000 tutorials out there for MVVM. “How do you make an MVVM?” clearly shows you have read nothing on the topic. So a good “WPF in 30 days” type book would be a good place to start. Do you really want to sidetrack this article for something you can easily Google? https://www.google.com/search?q=wpf+mvvm+tutorial&ie=utf-8&oe=utf-8

  11. bhs67 says:

    Sorry to bother you. I have written WPF code for a few years.

    I have read much about MVVM on the websites (including the ones you reference). I could find none that describes how to create an MVVM from scratch. Should I use Visual Studio? If so, do I start by creating a new WPF ap, and then modifying it? Thanks!

  12. Clint says:

    You keep saying “an MVVM” like you think MVVM is a thing like a button or a ListView. MVVM is a design pattern not a type. You don’t make ‘an MVVM’ – you design your application according to the MVVM pattern. It stands for Model View ViewModel. You make a View such as a Window, you have one or more Models (your data objects) and you have a class that acts as your ViewModel between the two. The ViewModel consolidates your models and methods that are specific to that View. Let’s say you were making a Employee Manager program. One view might be the New Employee view. You would have classes/objects/models for Person, Address, Department. Your ViewModel for the New Employee view would consolidate your various models and methods for making a new contact. Since the New Employee view doesn’t have anything to do with their performance reviews the ViewModel doesn’t need to know anything about the PerformanceReview class, or the ReviewingManager property etc. even though the larger Employee Manager program has these classes and would make use of them in a different view such as a “New Review Window”. Does that help? Try googling “MVVM pattern” for a fuller explanation.

  13. bhs67 says:

    Clint, Thanks for the clarification! I understand now.

    Magnus, Thanks for the example. I copied the first sections … they work … and provide further clarification!

  14. Guest says:

    > This means that the view’s code-behind file should contain no code to handle events that are raised from any user interface (UI) element.

    MVVM is meant to separate tasks, and if you have an event that only changes a View and does not affect ViewModel and Model, you must have the handler in the code behind, not in the ViewModel.

  15. Petar says:

    Hello Magnus,
    Thank you very much for this blog. It’s very helpful for me.
    I’m trying to create DelegateCommand<IEnumerable> but I’m not getting any kind of error and button does not respond on Click event.
    Here is my code:

    public ViewModel()
    {
    cbmCommand = new DelegateCommand<IEnumerable>(param => CbmCommandMethod(param), (s)=> { return true; });
    }

    private DelegateCommand<IEnumerable> cbmCommand;

    public DelegateCommand<IEnumerable> CbmCommand
    {
    get { return cbmCommand; }
    }

    private void CbmCommandMethod(object param)
    {
    // some method
    }

    When I change DelegateCommand<IEnumerable> into DelegateCommand and passing IEnumerable as CommandParameter, obviously I’m getting error when casting parameter but this means that I’m getting desired parameter(IEnumerable).

  16. Petar says:

    * correction on previous comment
    DelegateCommand into DelegateCommand

  17. Hi Petar,

    I am glad you like the blog but please start a new thread at the MSDN forums if you have a programming related question: https://social.msdn.microsoft.com/Forums/en-US/home?forum=wpf.

    I will try to answer it if no one else beat me to it.

    Make sure that you include all relevant code snippets for me or anyone else to be able to reproduce your issue from scratch.
